The Aircraft

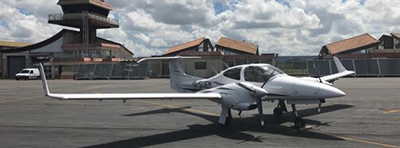

SueAir operates 4 Diamond aircraft, two DA42 TDI Twin Stars and two DA40 NGs. Links to useful documents and information on the specification, performance, weight and dimensions of these aircraft is set out below.

Document		G-SUEI	G-SUEM	G-SUEO	G-SUEG
Aircraft summary	Useful information on performance/ consumption and dimensions/ weights
Aircraft Flight Manual	Full description of all the aircraft’s systems & performance
Weight & balance	Excel spreadsheet
Pilot notes	Useful information & contact numbers
Aircraft Checklist	The aircraft's official checklist

Safety Equipment		G-SUEI	G-SUEM	G-SUEO	G-SUEG
Anti-icing	TKS De-icing System (wings, tail, propellers, windshield)
Weather	WX500 Stormscope
Weather	Golze ADL 120 weather radar
Traffic avoidance	Avidyne TAS 610 Traffic Advisory System
Emergency locator	ELT 406 MHz

Avionics		G-SUEI	G-SUEM	G-SUEO	G-SUEG
Integrated G1000 Glass Panel Cockpit	2xGarmin GDU 104x10 inch Flight Display (Primary FD and  Multi-function FD)
Transponder	Garmin GTX 33 Mode S Transponder
Auto-pilot	Garmin GFC 700 Automatic Flight Control System including Yaw Damper
ADF	Becker 3500 Remote ADF
DME	Honeywell KN 63 Remote DME

General		G-SUEI	G-SUEM	G-SUEO	G-SUEG
Fuel capacity of the main tanks	These tanks are located in the wings	189 litres	189 litres	106 litres	147 litres
Fuel capacity of the AUX tanks	These tanks are located in the engine nacelles	100 litres	100 litres	N/A	N/A
Total fuel capacity	Please read the pilot notes to understand the correct way to use the AUX tanks	289 litres	289 litres	106 litres	147 litres
Rudder pedals	Electrically operated?
Oxygen system
